KFS-2
KFS-2
(Unconstrained Duct)

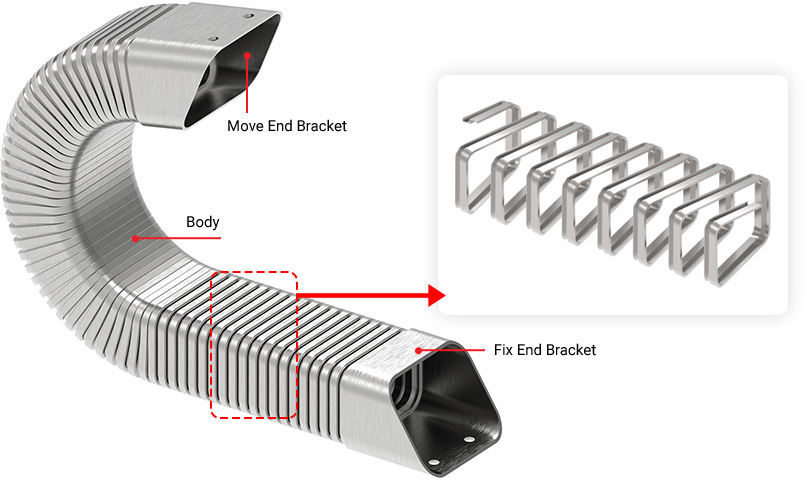

- Flexible duct는 하나의 스프링 형태의 일체형 제품으로 구성되어 있으며 신축성이 있다.
- Duct를 설치하기 힘든 코너 구간 또는 요철 구간에 설치하기 용이하며 내열성, 내구성이 높다.
- Flexible duct consists of a single spring-shaped integrated product and is flexible.
- It is easy to install in corners or uneven areas where it is difficult to install ducts, and has high heat resistance and durability.
Basic Specification
| Material | Steel or Stainless |
|---|---|
| Temperature | -50℃~200℃ |
| Duct for Machine tools, Automations machines, Medical equipment | |

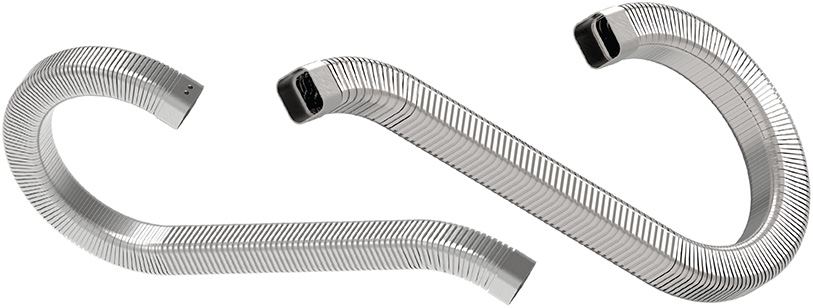

Assembly
Dimension of Duct
Order Form
| Type | Boundary Type | Radius | Length | Bracket Setting |
|---|---|---|---|---|
| KFS-2 | 1K | R60 | 1,500L | FAU/FAU |
| Form | 1K | 2K | 3K | 4K | 5K | 6K | 7K | 8K | 9K | 10K |
|---|---|---|---|---|---|---|---|---|---|---|
| Item No. | S2001 | S2002 | S2003 | S2004 | S2005 | S2006 | S2007 | S2008 | S2009 | S2010 |
| Boundary A×B (m/m) |
100×200 | 150×200 | 200×250 | 200×300 | 300×400 | 400×500 | 400×600 | 450×600 | 500×700 | 650×900 |
| Thickness | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 |
