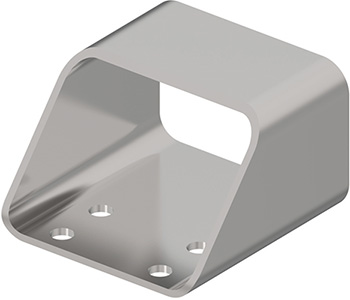

Flange KA Type
KC Series
Flange KA Type
Flange KA Type
Dimension List
| Form |
A |
B |
C |
D |
E |
F |
G |
I |
J |
K |
| 0K |
37 |
27 |
7.5 |
12 |
60 |
30 |
30 |
- |
15 |
7 |
| 0K-1 |
57 |
32 |
12.5 |
25 |
70 |
35 |
35 |
- |
15 |
7 |
| 1K |
57 |
37 |
10 |
20 |
70 |
35 |
35 |
- |
15 |
7 |
| 1K-1 |
57 |
57 |
10 |
20 |
70 |
35 |
35 |
- |
15 |
7 |
| 2K |
92 |
52 |
22.5 |
50 |
120 |
60 |
60 |
- |
20 |
7 |
| 2K-1 |
102 |
57 |
25 |
50 |
120 |
60 |
60 |
40 |
10 |
10 |
| 2K-2 |
92 |
67 |
22.5 |
45 |
120 |
60 |
60 |
40 |
10 |
10 |
| 3K |
122 |
67 |
35 |
70 |
120 |
60 |
60 |
40 |
10 |
10 |
| 4K |
122 |
87 |
35 |
70 |
120 |
60 |
60 |
40 |
10 |
10 |
| 4K-1 |
179 |
89 |
50 |
100 |
140 |
70 |
70 |
40 |
10 |
10 |
| 5K |
149 |
99 |
40 |
80 |
140 |
70 |
70 |
40 |
10 |
10 |
| 5K-1 |
179 |
104 |
50 |
100 |
140 |
70 |
70 |
40 |
10 |
10 |
| 6K |
184 |
119 |
65 |
130 |
160 |
80 |
80 |
40 |
20 |
10 |
| 7K |
112 |
112 |
65 |
130 |
160 |
80 |
80 |
40 |
20 |
10 |
| 8K |
122 |
122 |
65 |
130 |
160 |
80 |
80 |
40 |
20 |
10 |
