WIF 055
WIF 055
Basic Specification
| Material | STS, PA |
|---|---|
| Speed | 3m/s |
| Acceleration | 8m/s² |
| Temperature | -25℃~125℃ |
| Machine tools. Automations machines, Medical equipment. | |

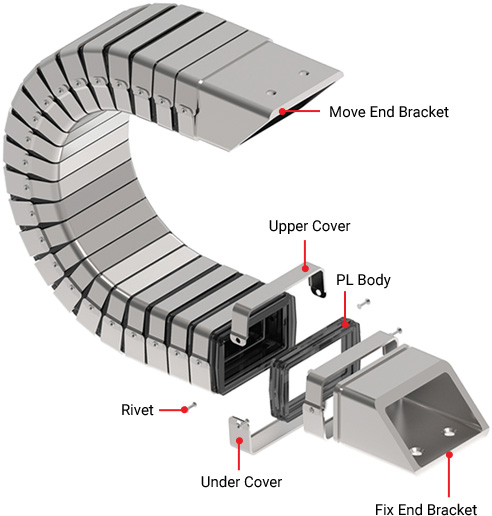

- Assembly
- Section A-A
| Radius | Pitch | H |
|---|---|---|
| 60 | 20 | 165 |
| 100 | 245 | |
| 150 | 345 |
Order Form
| Type | Radius | Length | Bracket Setting |
|---|---|---|---|
| WIF 055 | R60 | 1,500L | AU/AD (End type/Move type) |
