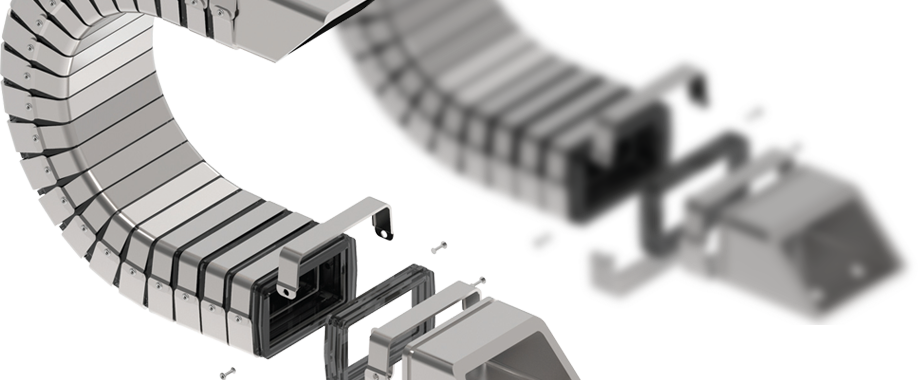

WIF Series

WIF Bracket

WIF Bracket

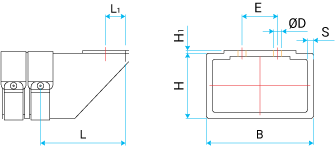

Dimension by Type of Bracket
도면 다운로드 바로가기

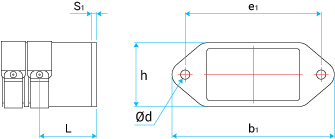

Type 'A'

Unit : mm
Chain Type B H H2 D E L L1 S
WIF 055 55.5 34 2 7 22 53.5 12.5 4.5
WIF 085 84.3 52 3 7 35 74 17 5.5
WIF 115 117.8 63 4 9 49 96 25 6
WIF 175 181 90 5 11 95 110 25 9

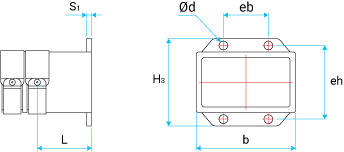

Type 'B'

Unit : mm
Chain Type B H H2 D E L L1 S
WIF 085 85 48.2 2 7 50 33 10 3.5
WIF 115 117.5 63 2.5 9 65 39 10 3.5
WIF 175 181 88 3 11 100 49 14 5.5

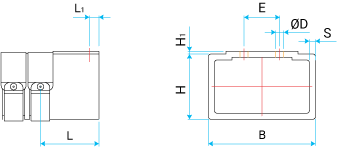

Type 'C'

Unit : mm
Chain Type b1 h d e1 L S1
WIF 055 90 34 7 75 29.5 4
WIF 085 123 48.5 7 107 37 4
WIF 115 165 63 9 146 44 5
WIF 175 231 88 11 205 55 6

Type 'D'

Unit : mm
Chain Type B H3 d eb eh L S1
WIF 055 55.5 70 7 18 55 29.5 4
WIF 085 85 85 7 45 70 37 4
WIF 115 117.5 110 9 60 90 44 5
WIF 175 181 144 11 95 118 55 6

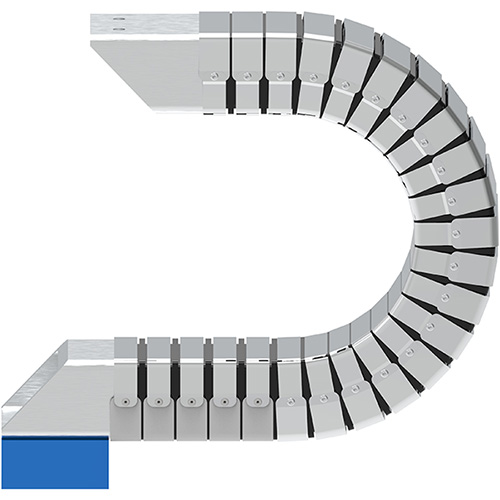

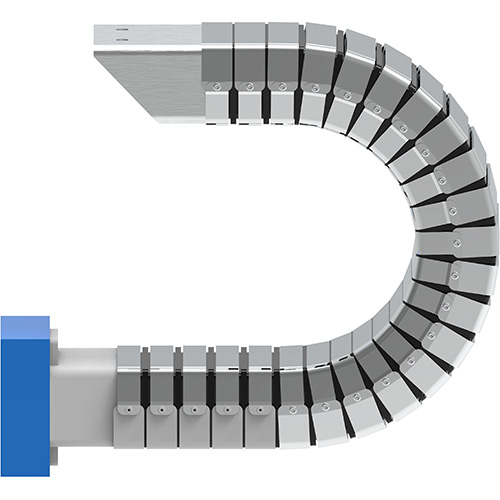

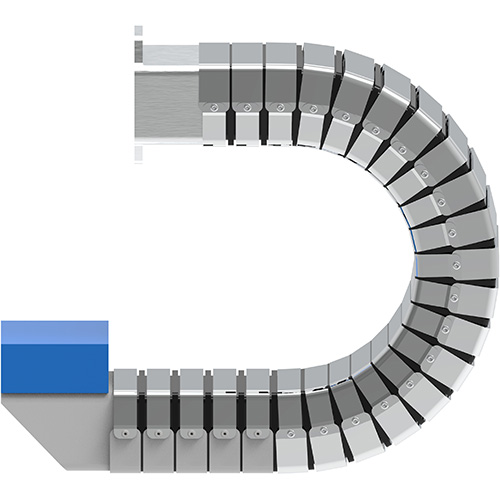

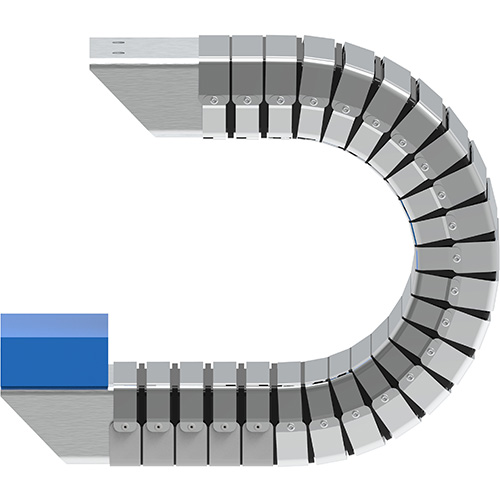

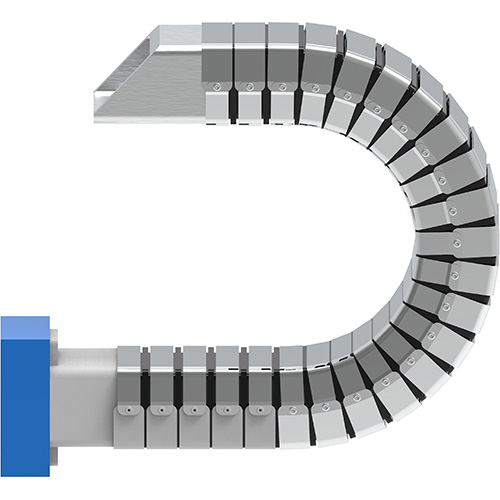

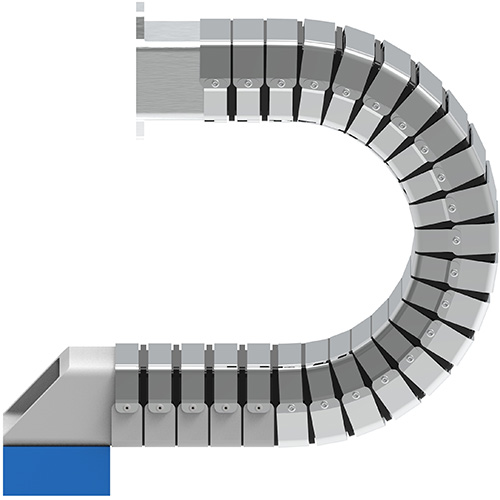

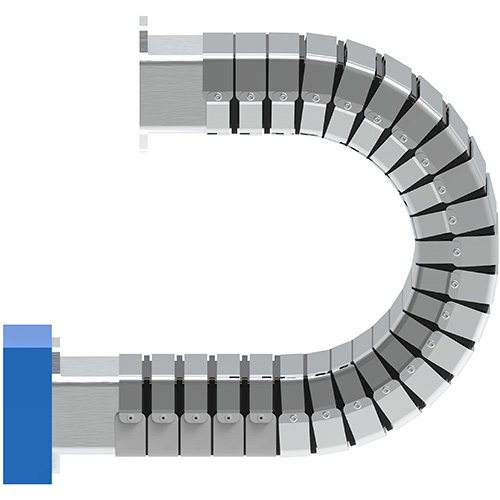

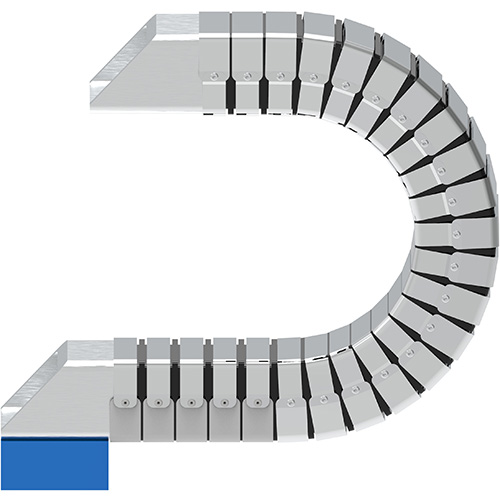

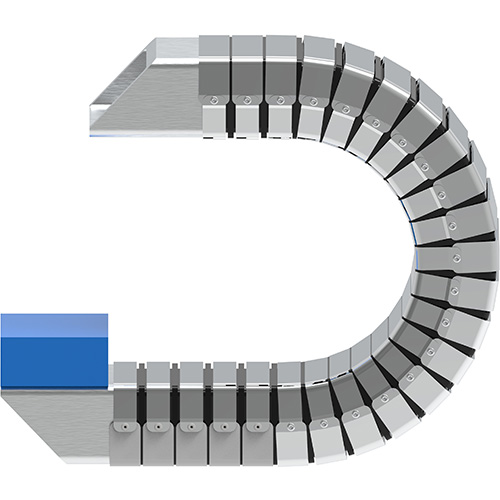

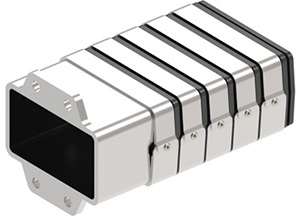

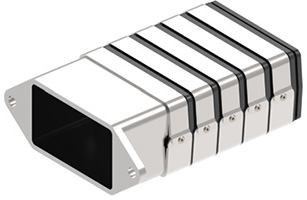

고정 브라켓 연결 방법

주문시 고정 형태를 기록해 주세요.
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. 6
  7. 7
  8. 8
  9. 9
