WIF 085
WIF 085
Basic Specification
| Material | STS, PA |
|---|---|
| Speed | 3m/s |
| Acceleration | 8m/s² |
| Temperature | -25℃~125℃ |
| Machine tools. Automations machines, Medical equipment. | |

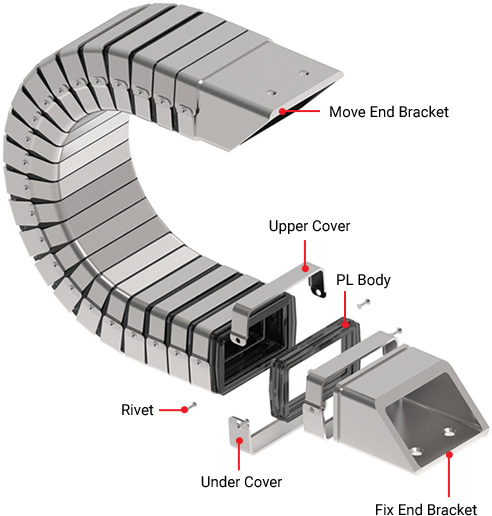

- Assembly
- Section A-A
| Radius | Pitch | H |
|---|---|---|
| 100 | 20 | 259 |
| 150 | 359 | |
| 200 | 459 | |
| 250 | 559 |
Order Form
| Type | Radius | Length | Bracket Setting |
|---|---|---|---|
| WIF 085 | R150 | 1,500L | AU/AD (End type/Move type) |
